Corrugated Cardboard Production Line Solution
Home / Products / Corrugating Machine Single Facer /

Italic Fingerless Type corrugated single facer China Fingerless Corrugation Machine Carton box making machine

Italic Fingerless Type corrugated single facer China Fingerless Corrugation Machine Carton box making machine

Italic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machine
Italic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machineItalic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machineItalic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machineItalic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machineItalic Fingerless Type corrugated single facer China Fingerless Corrugation Machine  Carton box making machine
CategoriesCorrugating Machine Single Facer
BrandJumbo Corrugated Machinery Solution
ModelSF-320C
Effective width1800mm
Working speed150m/min
Temperature range160—180℃
Pressure roll diameter¢320mm
FOB port天津
Download DOC
Update Time2021-10-18
Detail Information

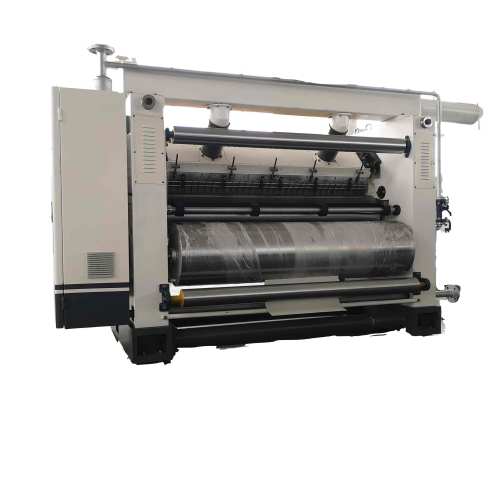

Italic Fingerless Type corrugated single facer China Fingerless Corrugation MachineCarton box making machine
Single Facer
Technical parameter
Effective width:1800mm
Operation direction:left or right(determined in accordance with customer plant)
Design speed:150m/min
Temperature range:160—180℃
Corrugated flute:(UV type or UVV type)
Roller diameter parameter
Corrugated roll diameter: up¢313mm      down¢316mm
Pressure roll diameter: ¢320mm
Glue roller diameter: ¢240mm
Fixed paste roller: ¢140mm
Preheater diameter: ¢402mm
Powered motor parameters:
Main frequency drive motor:18.5KW
Suction motor:11KW
Glue reducer:100W
Glue adjusting  motor:200W*2
Glue pump motor:2.2KW
