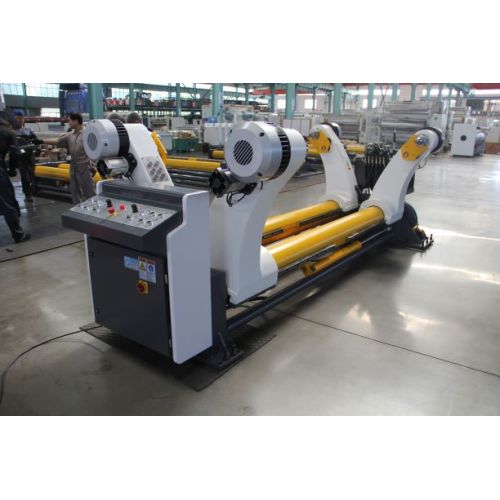

Heavy Type Hydraulic shaftless mill roll stand

Heavy Type Hydraulic shaftless mill roll stand

Heavy Type Hydraulic shaftless mill roll stand
Heavy Type Hydraulic shaftless mill roll standHeavy Type Hydraulic shaftless mill roll standHeavy Type Hydraulic shaftless mill roll stand
CategoriesMill Roll Stand
AlbumView larger image
BrandJumbo Corrugated Machinery Solution
ModelZJ-V5B
Paper clip range1000mm~1800mm
Folder diameter350mm~1500mm
Gas source work pressure0.4---0.8Mpa
Work pressure16---18Mpa
Update Time2021-02-28
Detail Information
Heavy Type Hydraulic shaftless mill roll stand
Structural features
Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and rightand others,the lifting of the paper adopts hydraulic drive.
Brake adjustable adopts multipoint braking system.Each paper rack is equipped with two paper carts thatcan be served simultaneously from both sides.
Technical parameter
Paper clip range  maximum : 1800mm     minimum : 1000mm
Folder diameter  maximum : 1500mm     minimum : 350mm
Main shaft diameter of paper holder:¢240mm
Gas source work pressure(Mpa):0.4---0.8Mpa
Hydraulic system parameters
Work pressure(Mpa):16---18Mpa
Lifting hydraulic cylinder:¢100×440mm
Clamping hydraulic cylinder:¢63×1300m
Hydraulic station motor power:3KW --380V -- 50Hz
Solenoid valve voltage:220V  50 Hz
