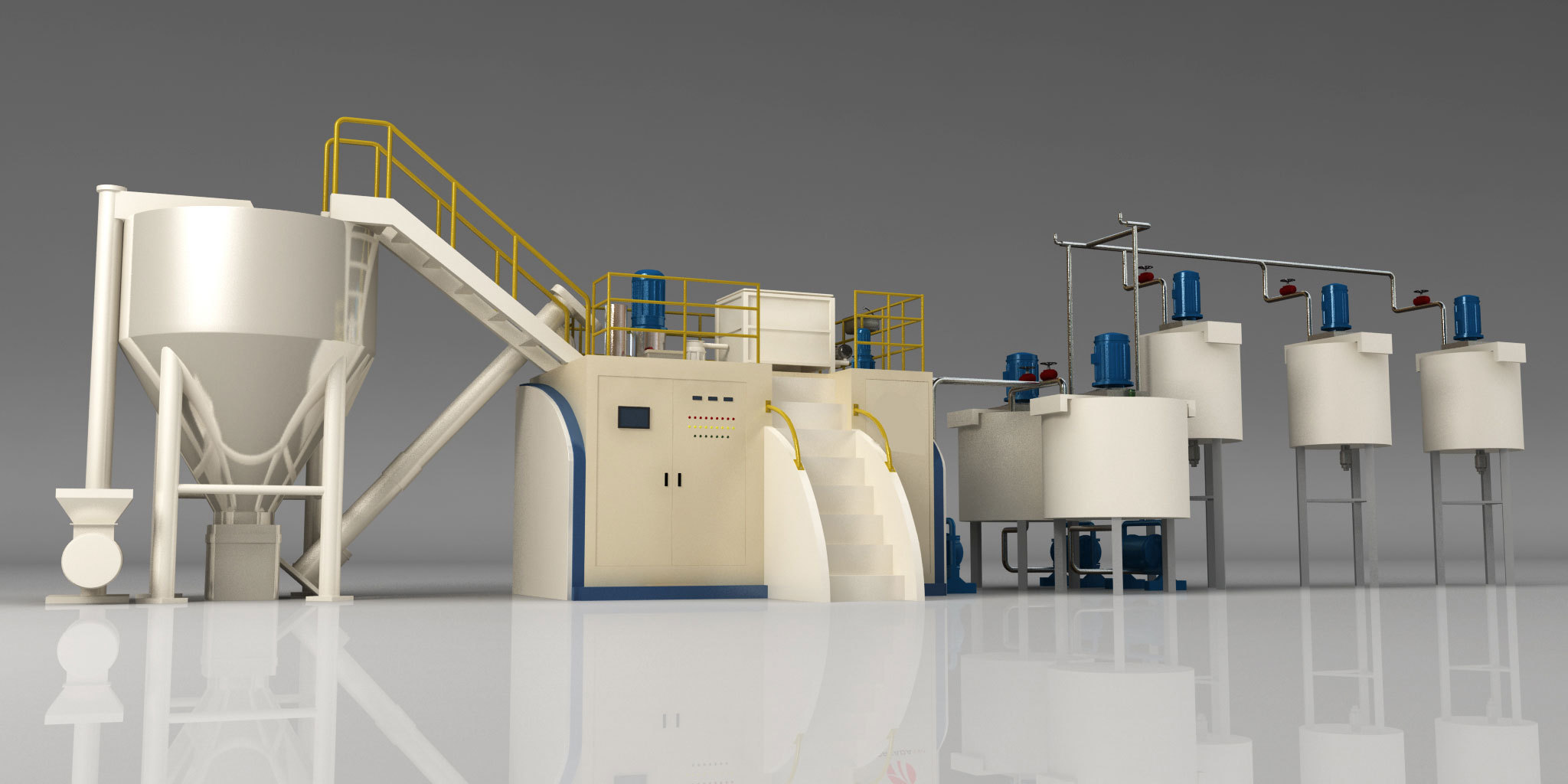

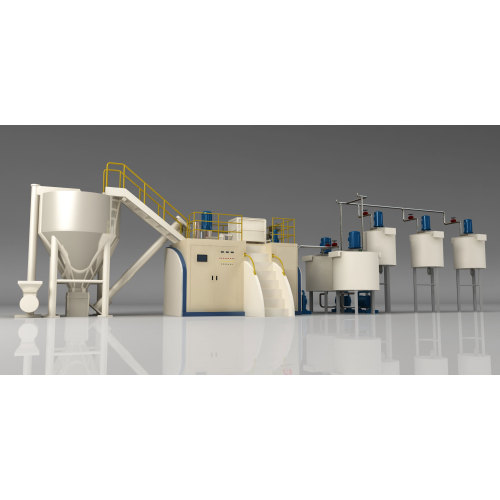

Full Automatic Cardboard Glue Making System china glue making machine

Categories	Glue Making Machine
Brand	Jumbo Corrugated Machinery Solution
Model	ZJZ
Horizontal body glue mixer	1250mm×1000mm×900mm
Carrier glue mixer diameter	￠800mm×900mm
Storage tank diameter	￠1200mm×1200mm
Output plastic pump motor	2.2Kw
FOB port	tianjin
Download DOC
Update Time	2021-10-16

Contact Now

Detail Information

Full Automatic Cardboard Glue Making System china glue making machine

Structural features

Provide the starch adhesive to the corrugated single facer , glue machine and some other gluing equipment.

Horizontal glue machine can meanwhile matched with main body glue and carrier glue, and mixing, glue large。

Making room storage barrels adhesive solution was to use the glue pump rubber equipment storage barrels, adhesive solution for equipment。

Storage barrels, plastic barrels with mixing device, avoid glue solution precipitation agglomerate。

System unit with carrier vessel, main tank, storage tank, and send the glue pump, the back glue pump, etc。

Glue system adopt glue cycle,rest glue go back to the glue square cylinder,Liquid level float automatic control,the back glue a bucket of glue liquid being beaten back with glue equipment storage bucket，cycle for glue，Save the glue solution，prevent the glue solution in the rubber plate pasting and caking precipitation.

Work has been completed, the residual gum dividend total pipeline with rubber equipment rubber pumped back rubber room storage barrels, for next time use。

Responsible for technical guidance, teaching adhesive dispensing process。

Technical parameter

Horizontal body glue mixer：one

Carrier glue mixer：one

Storage glue mixer：one

Plastic buckets on coater：one

Coating machine back plastic buckets :one

Plastic buckets on single machine :two

Single machine back plastic buckets：two

Lose glue dispensing pumps：four

Glue barrel diameter parameters

Horizontal body glue mixer：1250mm×1000mm×900mm

Carrier glue mixer diameter：￠800mm×900mm

Diameter plastic bucket on Glue：￠800mm×1000mm

Plastic buckets on single machine：￠800mm×1000mm

Storage tank diameter：￠1200mm×1200mm

Powered motor parameters

Horizontal body glue mixer：3Kw

Carrier glue mixer：2.2Kw(Ordinary three-phase)

Output plastic pump motor ：2.2Kw（Ordinary three-phase）

Storage Tank Motor：1.5Kw（Ordinary three-phase）
