Cardboard Automatic UP Stacker Machine For Corrugated Board Making Line

Cardboard Automatic UP Stacker Machine For Corrugated Board Making Line

Cardboard Automatic UP Stacker Machine For Corrugated Board Making Line
Cardboard Automatic UP Stacker Machine For Corrugated Board Making LineCardboard Automatic UP Stacker Machine For Corrugated Board Making LineCardboard Automatic UP Stacker Machine For Corrugated Board Making LineCardboard Automatic UP Stacker Machine For Corrugated Board Making Line
CategoriesCorrugating Machine Cardboard Stacker
BrandJumbo Corrugated Machinery Solution
ModelDMC-200
Effective width1400mm
stacking height18mm
stacking length3500mm
Download DOC
Update Time2021-10-16
Detail Information

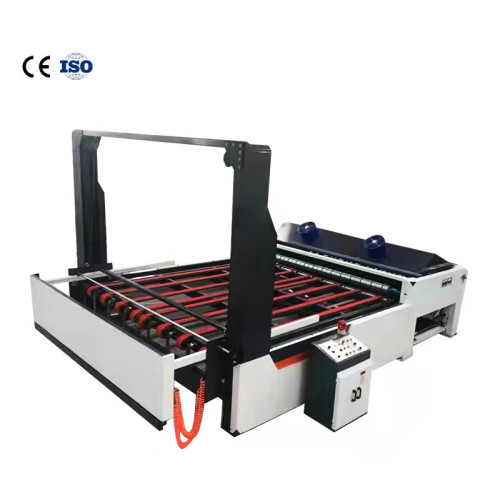

Cardboard Automatic UP Stacker
1.Effective width:1400mm-2500mm,design speed:2000m/min-250m/min
2.The max stacking stacking height :250mm the max,stacking length:3500mm
3.Automatic change order in 5 seconds,automatic counting and automatic horizontal paper
board delivery
4.Synchronization with production management control system,change order automatically with high speed
5.During working with production manage control system,the waste paper board less than 700mm due to change order
6.Caterpillar type stacking platform ,AC servo control  movement,stacking smoothly
7.Automatic paper board side delivery when reach the setting quantity
8.Paperboard dam controlled by AC servo system,change order automatic and fast,suitable for small size paperboard stacking
9.Standard electric transport conveyor and double  side delivery table
10.Individually sealed control cabinet,electrical equipment running in clean environment
11.Color touch-screen display for easy field operation
12.Fully automatic operation control,improve efficiency,save manpower,reduce labor intensity
