Home > Products > 5 ply Layer corrugated board production line >China Fully Automatic 5 ply corrugated board production line

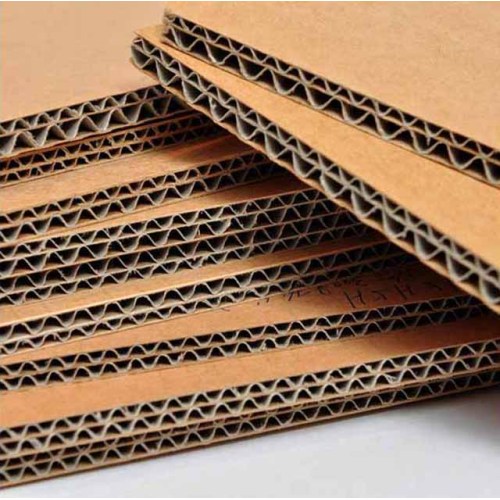

China Fully Automatic 5 ply corrugated board production line
Categories 5 ply Layer corrugated board production line Album View larger image Brand Jumbo Corrugated Machinery Solution Model WJ150-1800 -II Maximum paper width 1800mm Working speed 120 m/min Longitudinal cutting paper accuracy ±1mm Crosscutting precision ±1mm Corrugated combination A\C\B\E Update Time 2021-02-25 Detail InformationChina Fully Automatic 5 ply corrugated board production line1.5 set Hydraulic shaftless mill roll standSpindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.2.10 set Rail and TracksThe guide track is 6000mm and the trolley is welded with 10mm。3.2 set Pre-heaterRoller ¢600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area4.2 set Fingerless type single facerCorrugated main roller ¢320mm,material with 48CrMo Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.5.one set Triple preheaterRoller ¢600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area.6.1 set Double glue machineThe diameter of the roller is 269mm.Independent variable frequency motor drive, manual。 Adjustment of glue clearance.7.1 set Conveyor bridgeAdopt independent variable frequency motor drive, pull paper adsorption tensioning device8.1 set Double facerRack 360 mm GB channel,Chrome hot plate 600 mm *20 pieces,The whole structure of thehot plate design.PLC automatic control press plate. Temperature display, frequency motor.Jumbo Corrugated Cardboard Production Line Solution
Jumbo is the professional manufacturer of high-speed corrugated board production lines (three, five, seven), single-sided corrugated board production lines, printing equipment,...
