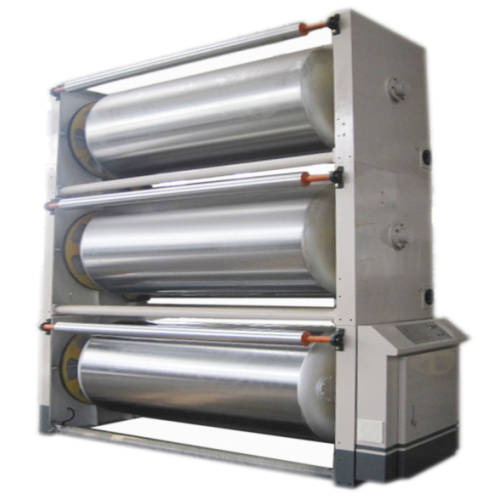

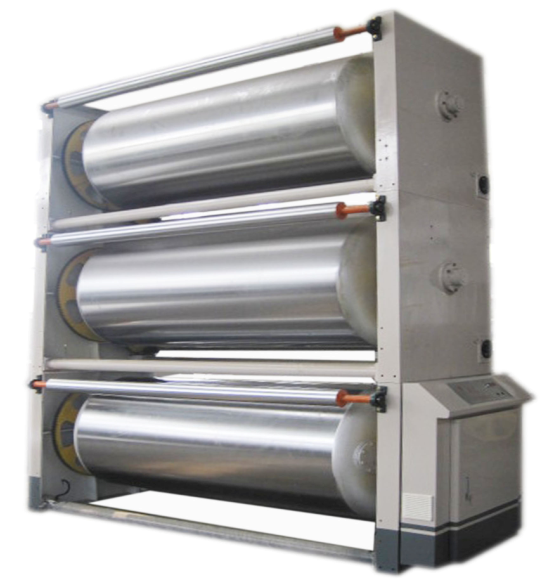

Triple Corrugated Paper Preheater Machine

Triple Corrugated Paper Preheater Machine

Triple Corrugated Paper Preheater Machine
Triple Corrugated Paper Preheater MachineTriple Corrugated Paper Preheater MachineTriple Corrugated Paper Preheater MachineTriple Corrugated Paper Preheater MachineTriple Corrugated Paper Preheater Machine
CategoriesCorrugating Machine Preheater
BrandJumbo Corrugated Machinery Solution
ModelRG-3-600
Effective width1600mm
roller Diameter¢600mm
Steam temperature150-200 ℃
Steam pressure0.8-1.3Mpa
Download DOC
Update Time2021-10-28
Detail Information
Triple  Corrugated Paper Preheater Machine
Structural features
The preheating roller is designed with butterfly head, which conforms to the first class national standard of pressure vessel and has the certificate of pressure vessel.
The roll surface after precision grinding, fine grinding and hard chromium plating processing,surface friction is small and durable。
Electric adjustment wrap angle , wrap angle can be rotated within 360 °to adjust the paper heat area .
Technical parameter
Effective width:1800mm
Diameter of the preheat roller:¢900mm
Diameter of the angle:¢110mm×2
Steam temperature:150-200 ℃
Steam pressure:0.8-1.3Mpa
Motor power:250W  short(S2)work system
