China factory Automatic 3 ply layer corrugated board production line

China factory Automatic 3 ply layer corrugated board production line

China factory Automatic 3 ply layer corrugated board production line
China factory Automatic 3 ply layer corrugated board production lineChina factory Automatic 3 ply layer corrugated board production lineChina factory Automatic 3 ply layer corrugated board production lineChina factory Automatic 3 ply layer corrugated board production lineChina factory Automatic 3 ply layer corrugated board production line
Categories3 ply layer corrugated board production line
AlbumView larger image
BrandJumbo Corrugated Machinery Solution
ModelWJ100-1800 -II
Maximum paper width1800mm
Working speed100m/min
Corrugation Type3Py
Crosscutting precision±1mm
Automatic GradeAutomatic
Cutting length500mm~9999mm
Total Power150KW
Minimum cutting width135mm
Update Time2021-02-27
Detail Information

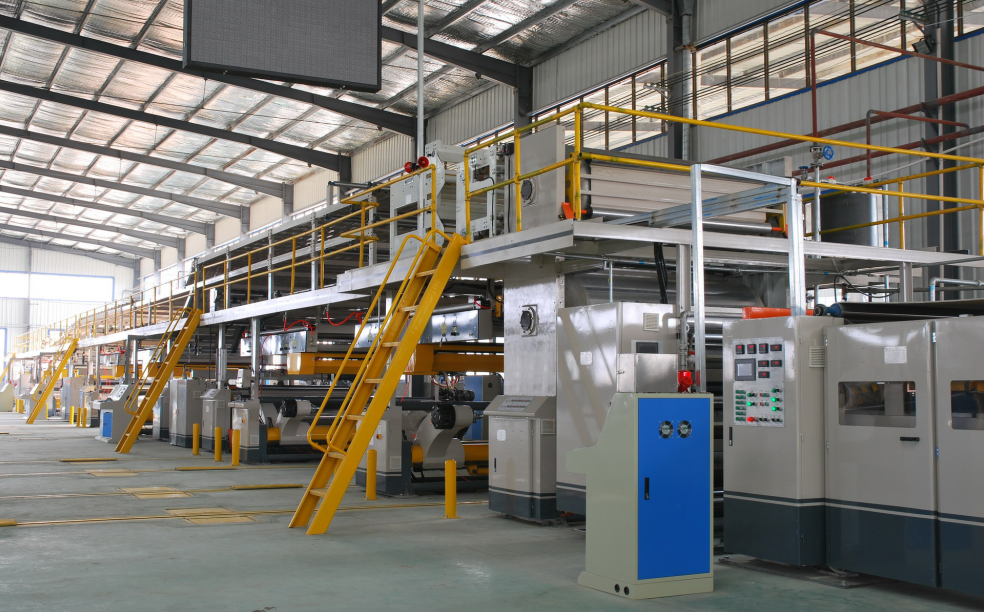

China factory Automatic 3 ply layer corrugated board production line

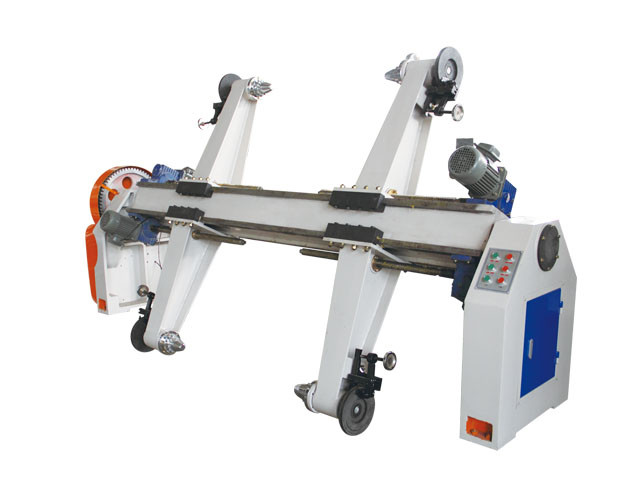

1.3 set Electric millroll stand
Toothed clip head, manual butterfly disc brake,mechanical drive lifting, left and right translation, Medium
2.6 set Rail and Tracks
The guide track is 6000mm and the trolley is welded with 10mm
3.1 set Pre-heater

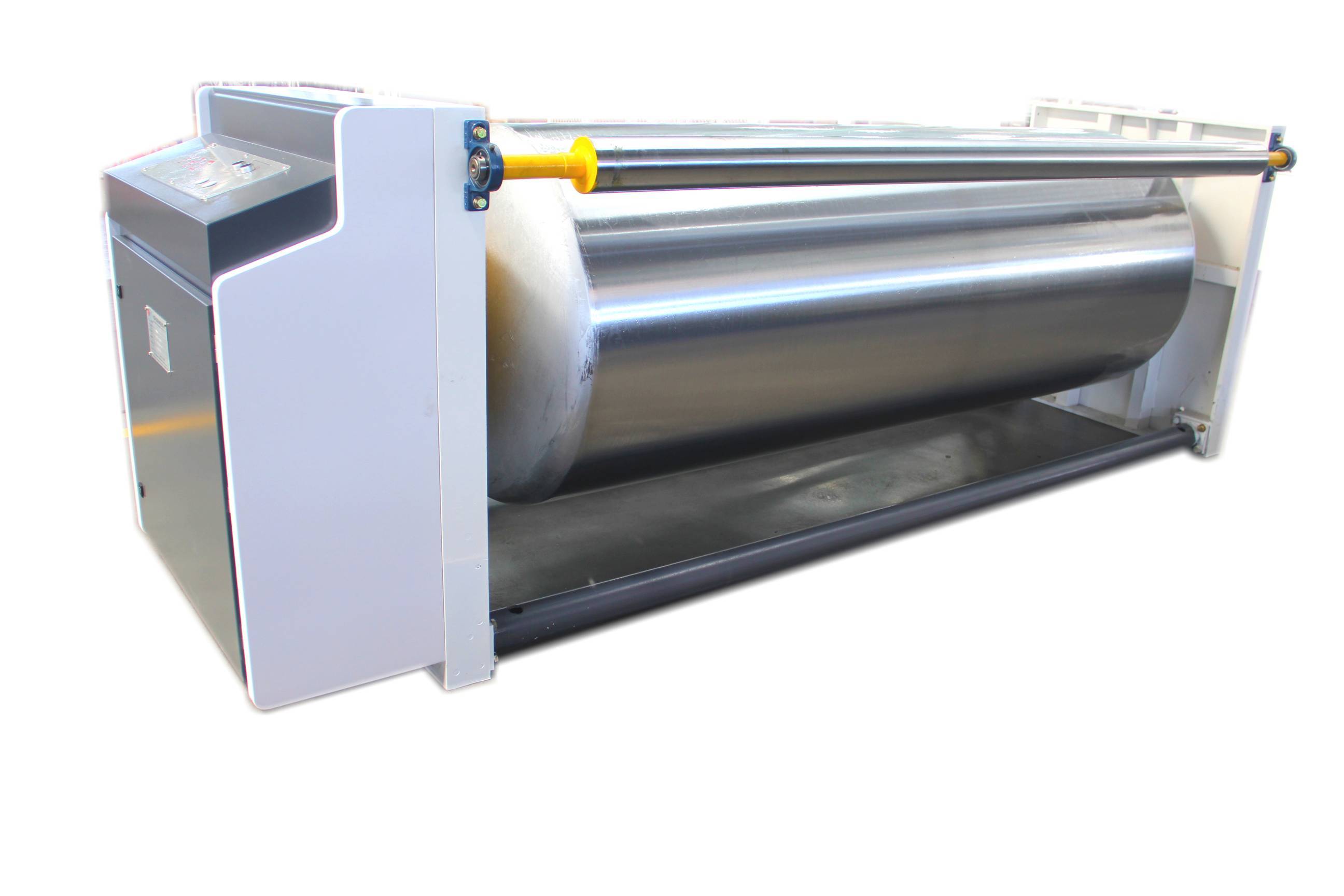

Roller ¢600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area.

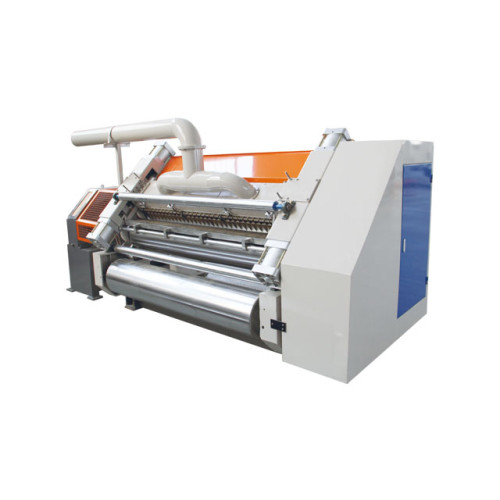

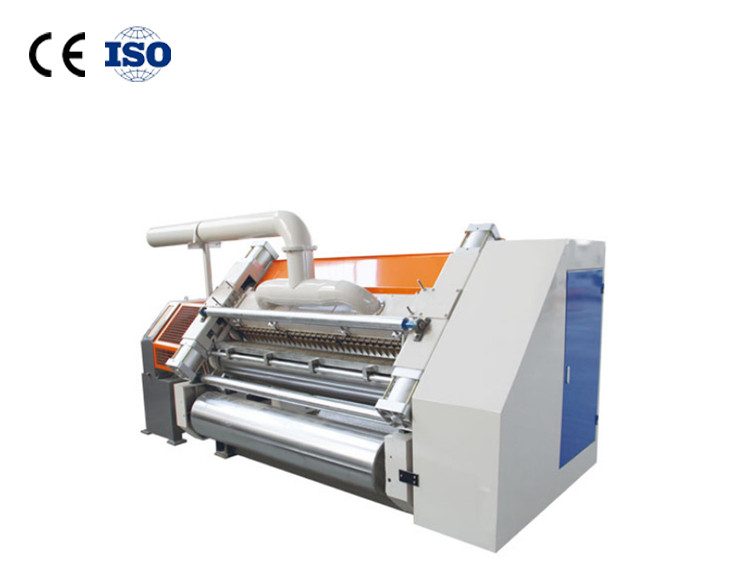

4.1 set Corrugated single facer
Corrugated roller ¢280 mm, 48 CrMo alloy steel material.Adopt independent gearbox, universal joint drive structure.Steam is heated
5.1 set Three Pre-heater
Roller ¢600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area.

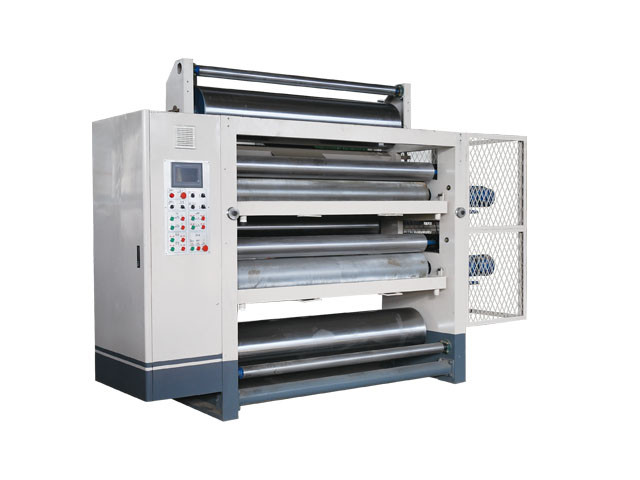

6.1 set  Double glue machine
The diameter of the roller is 215mm.Independent inverter motor drive per layer.Manual adjustment of glue clearance.
7.1 set Conveyor bridge
Adopt independent variable frequency motor drive, pull paper adsorption tensioning device
8.1 set Double facer
Drying department is 600mm*12 heating plate, pneumatic lifting roller, adopting the compact pressure roller.

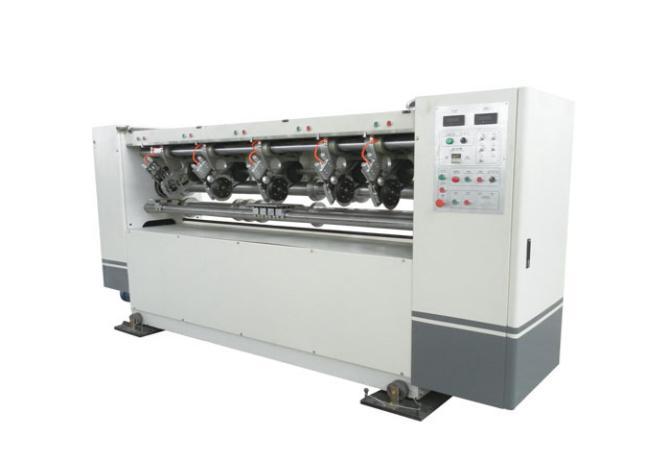

9.1 set Thin knife slitting
Electric thin knife, electric tuning, five-blade eight-wire, blade with tungsten alloy steel.

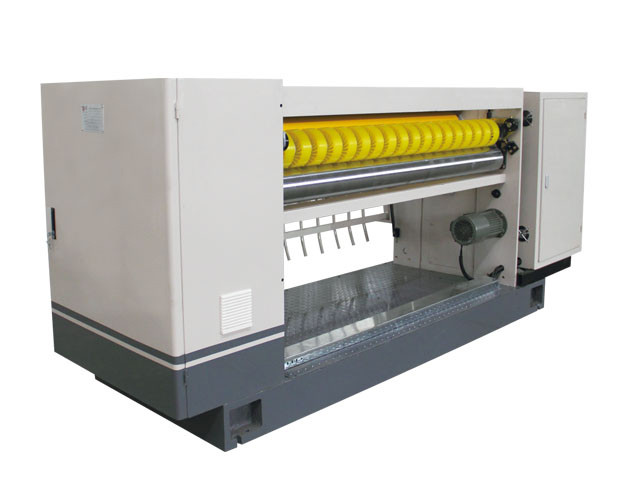

10.1 set NC cutter  helical knives
Full Ac servo control, energy storage brake, helical knife type structure, oil-immersed gear drive, 10.4-inch touch screen display.
11.1 set  Carton stacker
Electric adjusting board dimensions, pneumatic control horizontal output board

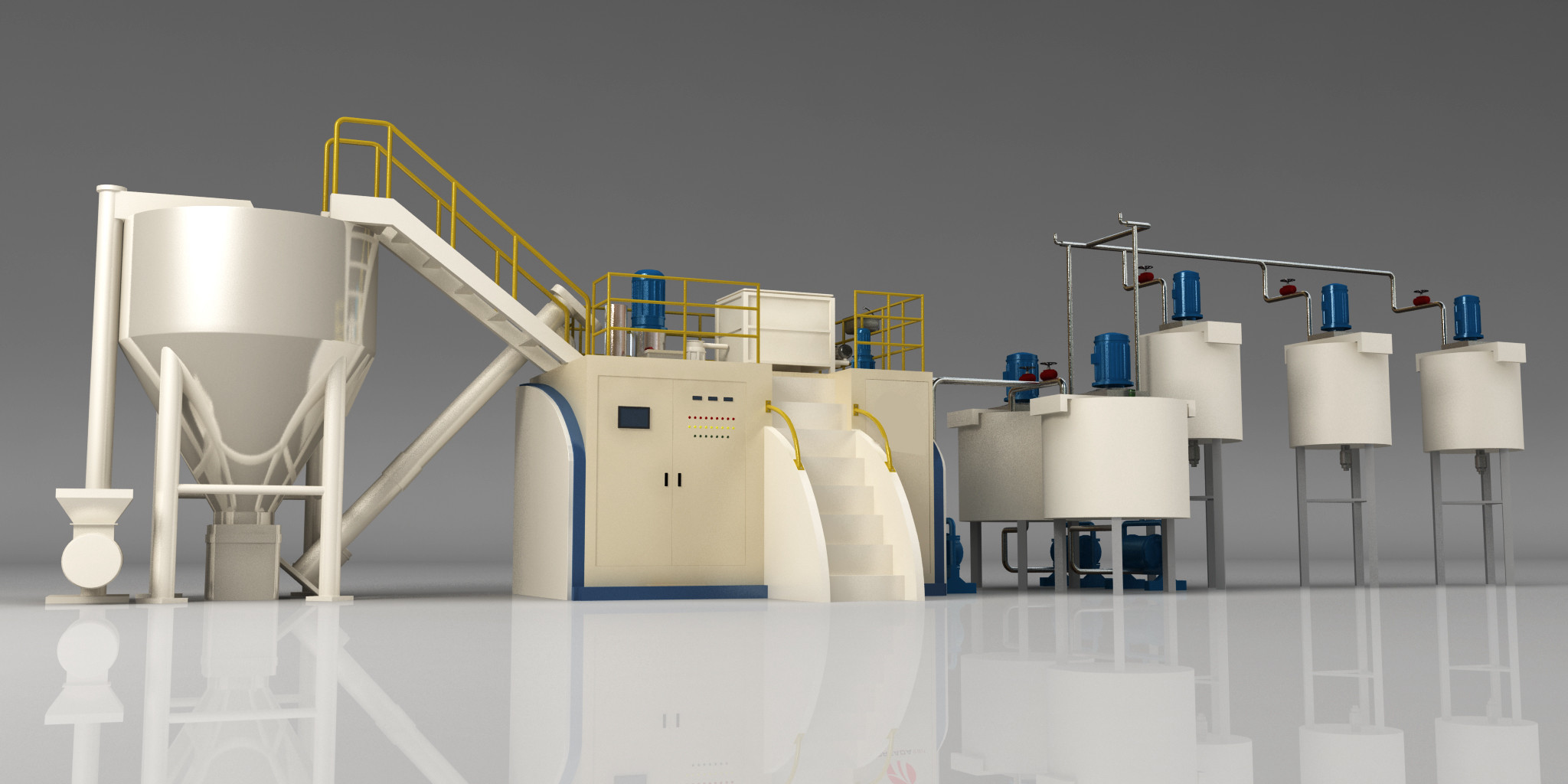

12.1 set Glue station system
The pipeline customer is prepared.The glue device is composed of carrier tank, main tank, storage tank, and glue pump and return pump.
13.1 set Air supply system
Customer's own gas source
14.1 set Steam system
Contain the valve of pipeline, steam trap,instrument and other steam components

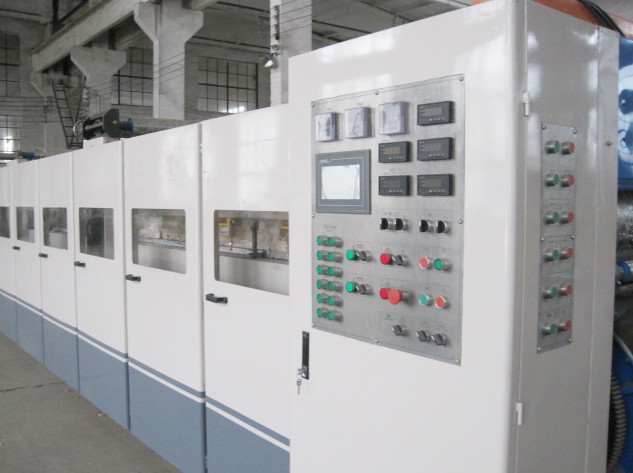

15.1 set Electric control systems
Electric control system: single surface machine, drive part, double-sided machine, and glue applicator all adopt frequency conversion motor,
Taiwan Delta variable frequency control system.The main relay adopts the French schneider famous brand products
