China Automatic 2ply Corrugated Cardboard Production Linehttp://www5.53kf.com/upload/imglist/company/2/bgbijachbb3843_800.jpg?w=800&h=343

Categories	2ply Corrugated Cardboard Production Line
Brand	Jumbo Corrugated Machinery Solution
Model	WJ100-1800
Maximum paper width	1800mm
Working speed	100m/min
Corrugation Type	2Ply
Crosscutting precision	±1.5mm
Total Power	50kw
Cutting length	300-9000mm
Automatic Grade	Automatic
Download DOC
Update Time	2022-01-23

Contact Now

Detail Information

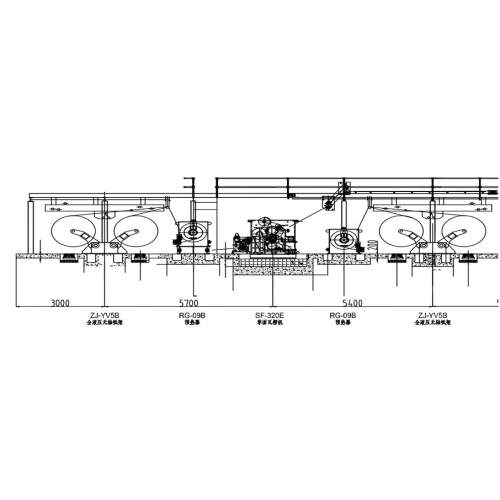

China Automatic 2ply Corrugated Cardboard Production Line

1.1 set Hydraulic shaftless mill roll stand

Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.

2.2 set Rail and Tracks

The guide track is 6000mm and the trolley is welded with 10mm

3.1 set Corrugated Single facer

Corrugated main roller ￠280mm，material with 48CrMo Tile roll modular group lifting transfer.Airbag ballasting structure，import main bearing，

PLC automatic control glue，HMI touch screen，Breaks automatic parking relief，steam heating way.

4.NC Cutter helical knives

Cutting length: 300-9000mm, Cutting accuracy: ±1.5mm (uniform speed).

The computer can store multiple sets of orders, and the man-machine interface is separated, you can inquire, modify, add and cancel at any time.

It uses high-quality advanced servo drives with a mechanical speed of 80 meters per minute.

5.Rotary paper receiver

Save labor, convenient to pick up paper, revolving structure.
