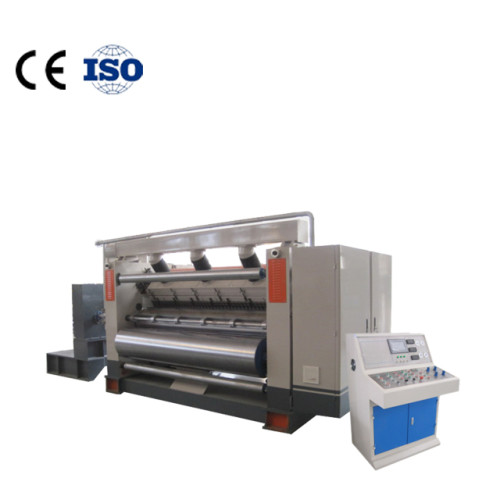

Square single side corrugating machine High speed 320 360 single facer corrugated cardboa

Square single side corrugating machine High speed 320 360 single facer corrugated cardboa

Square single side corrugating machine  High speed 320 360 single facer corrugated cardboa
Square single side corrugating machine  High speed 320 360 single facer corrugated cardboaSquare single side corrugating machine  High speed 320 360 single facer corrugated cardboaSquare single side corrugating machine  High speed 320 360 single facer corrugated cardboaSquare single side corrugating machine  High speed 320 360 single facer corrugated cardboaSquare single side corrugating machine  High speed 320 360 single facer corrugated cardboa
CategoriesCorrugating Machine Single Facer
BrandJumbo Corrugated Machinery Solution
ModelSF-320C
Effective width2200
Design speed150m/min
Temperature range160—180℃
Download DOC
Update Time2021-10-18
Detail Information

Square single side machine of 3 / 5 / 7 layer corr

Single side corrugating machine adopts cover suction structure and is equipped with high-pressure strong fan. The air source and electrical control are centralized in the same operation cabinet, and the operation side is fully enclosed and covered. High quality resin sand casting, wall panel thickness 200mm. It adopts independent gearbox and universal joint transmission structure. A lifting trolley is installed on the conveying overpass, which can be used to take out the tile roller assembly and pressure roller when necessary, which is convenient and fast. The gluing roller unit adopts an integral outward moving structure, which can be moved out of the machine as a whole during maintenance, so as to improve the work efficiency.The spray and humidity control devices are equipped to maintain good deformation stability and avoid dry cracking. It adopts automatic circulating glue supply system and double pneumatic cylinder pneumatic glue feeding device, which has good cushioning effect. The gluing part adopts an integral sliding plate structure, and the surface of the gluing roller is engraved with 32 line pit reticulation after fine grinding and plated with hard chromium.The corrugating roller is made of 48crmo alloy steel. The diameter of the main corrugating roller is ¢ 360mm. It is quenched and tempered → rough turning → fine boring of the inner hole → drying and assembly of the shaft head → welding → tempering and stress removal → fine turning → rough grinding → medium frequency quenching → fine grinding of the NC grinder → tungsten carbide treatment. The main force is driven by variable frequency motor, which is energy-saving, efficient and low failure rate. The gluing width is adjusted electrically to adapt to the change of base paper width. The gluing amount is adjusted electrically, displayed and operated on the touch screen, and the gluing gap is transmitted through the encoder, with high accuracy. The power and operating parts are equipped with safety nets to ensure the safety of personnel during the operation of the machine.Image
