Application of heating compound machine in corrugated board production line

Application of heating compound machine in corrugated board production line

Application of heating compound machine in corrugated board production line
Application of heating compound machine in corrugated board production lineApplication of heating compound machine in corrugated board production lineApplication of heating compound machine in corrugated board production line
CategoriesCorrugating Machine Double Facer
BrandJumbo Corrugated Machinery Solution
ModelSM-10
Cooling stereotypes length4m
Temperature requirement160—200℃
Steam pressure0.8-1.3MPa
Air source pressure0.6—0.9MPa
Upper drive rubber roller diameter¢700mm
Lower drive rubber roller diameter¢400mm
FOB porttianjin
Download DOC
Update Time2021-10-18
Detail Information

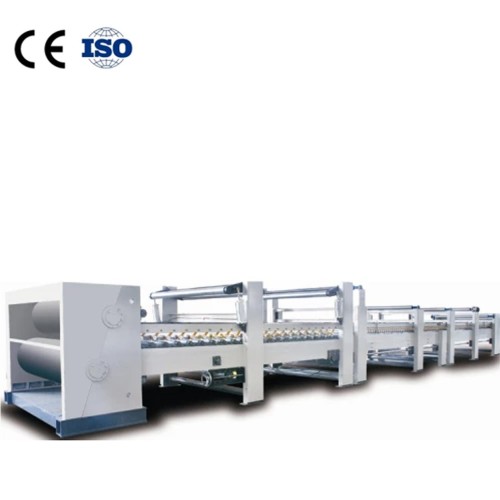

Double Facer Corrugated Box Making Machine

The surface of the heating plate is grinded, the width of the hot plate is 600mm, there are 12 heating plates, the cooling setting is 4 meters.The heating plate is made of vessel plate, which conforms to the national first-class pressure vessel standard, with pressure vessel certificate and inspection certificate. The upper conveyer belt rectifies the right and left side to adopt the pneumatic automatic correction deviation. Heating plate heat transfer pipe temperature control sub-four-segment, with a temperature display. Double cylinder S type cotton belt tensioning device is used for upper cotton belt. The lower belt adopts pneumatic tension, pneumatic correction. Drive roller coated with attached wear-resistant rubber showed a herringbone structure With a high, ensure smooth cardboard output Main drive motor for frequency conversion motor low-speed torque wide speed range ,reliable, and easy maintenance. Hot plate internal for partition isolation structure,s-shaped flow of steam Steam, water separation function significantly improves the utilization of steam Design speed: 150-180m / min, width: 1400m-2000m, heating plate mechanism: 600mm, the number can be configured as 8-14 according to the production line speed, sectional cross steam supply, the surface of hot section plate is ground and plated with hard chromium, which meets the national standard of class II pressure vessel. The hot section adopts pressure roller structure, and sectional pneumatic pressure adjustment can be selected according to the number of cardboard layers, The air cylinder tensioning device is adopted for the cotton belt, and the electric or automatic conveyor belt deviation correction device is selected. The driving part adopts oil immersed gearbox, which can be driven by electromagnetic speed regulation electric or frequency conversion motor,The surface of the main drive roller is wear-resistant rubber, and the surface is in waist drum shape to prevent deviation of the conveying belt.
