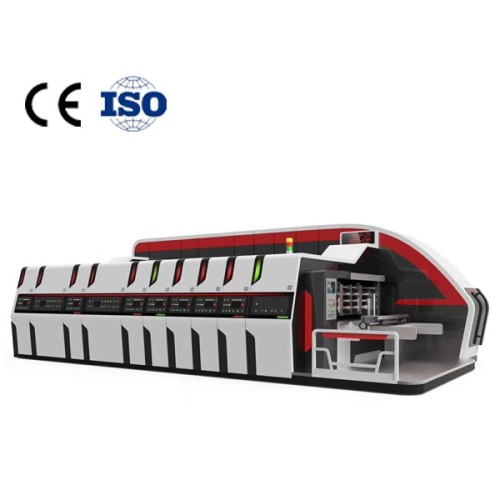

Ruichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type Automatic pizza box printing machine corrugated ca

Ruichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type Automatic pizza box printing machine corrugated ca

Ruichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type  Automatic pizza box printing machine corrugated ca
Ruichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type  Automatic pizza box printing machine corrugated caRuichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type  Automatic pizza box printing machine corrugated caRuichang pizza box automatic printing machine Corrugated flexographic printing groove punching and cutting equipment China 2021 new type  Automatic pizza box printing machine corrugated ca
CategoriesPrinting machinery
BrandJumbo Corrugated Machinery Solution
Model1224
Design speedPcs/min100
Working speedPcs/min80-100
Max paper coverage1200*2400(mm)
Effective printing area1200*2360(mm)
Min finish size350*600(mm)
cardboard thickness2-10(mm)
Wall thickness50mm
Feeding precision±1(mm)
Print precision±0.5(mm)
Slotter precision±1(mm)
Die cut precsion±1(mm)
Main moter22(kw)
Working motor power30(kw)
Total power35(kw)
FOB port天津港口
Download DOC
Update Time2021-10-18
Detail Information
  • Automatic pizza box printing machine corrugated ca

  • Image

Main features:

The whole machine is designed according to the high demand, reliability function and safety production. Full-automatic and high speed, PLC controlled.

Selects the high quality materials and accessories, all the drive rollers adopted high quality steel material of famous brand, hard chrome plating and surface treated by lapping finish.

Transfer roller impression cylinder, the clearance of anilox roller is controlled by computer.

Higher configuration series adopt full scale adsorption to make the output better quality


Name

Origin

Specification

Quantity

A, Feeding unit

1. main motor

Hengshui YongSheng

22kw Variable frequency motor

1

2. Moving motor

ShengBang

1.5kW 1/120 Geared motor

1

3. Back baffled

XiaoSen

0.18kW 1/30 Geared motor

1

4. Paper suction auxiliary fan

Hebei

7.5kW motor

1

5. Dust removal motor

Hebei

4.0kW

1

5. Dust removal motor

Hebei

4.0kW

1

B, Printing unit

1. Phase

Cangzhou Haixing

0.37kW 1/40 Geared motor

2. rubber roller motor

Cangzhou Haixing

0.4kW 1/30 Geared motor

1. other bearing

C&U, HRB

all



2. AC contactor

Chint

all



3.PLC

Taiwan Delta

all



4. Main touch screen

Weiluntong

10 inch



5. Group touch screen

Weiluntong

7 inch



6. Inverter

Delta





7. Keyless connection ring

Xianyang

all



8. Pneumatic diaphragm pump

Jinchangjiang

all



9. Metal anilox roller

Dalian tengda

all



10. Rubber roller

Hebei

all
