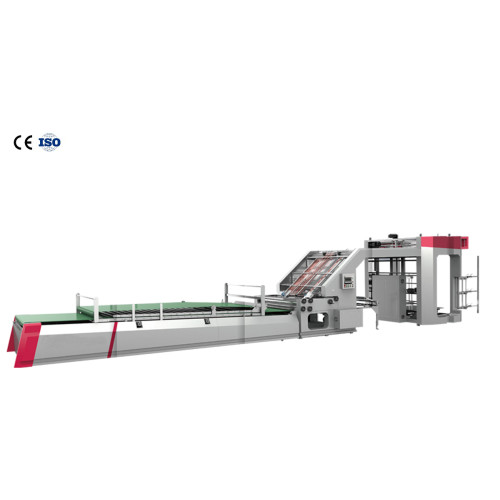

HCL B Automatic Flute Laminator Machine Suitable for corrugated veneer Fully Automatic Corrugated Flute Laminating Machin

HCL B Automatic Flute Laminator Machine Suitable for corrugated veneer Fully Automatic Corrugated Flute Laminating Machin

HCL B Automatic Flute Laminator Machine Suitable for corrugated veneer  Fully Automatic Corrugated Flute Laminating Machin
HCL B Automatic Flute Laminator Machine Suitable for corrugated veneer  Fully Automatic Corrugated Flute Laminating MachinHCL B Automatic Flute Laminator Machine Suitable for corrugated veneer  Fully Automatic Corrugated Flute Laminating MachinHCL B Automatic Flute Laminator Machine Suitable for corrugated veneer  Fully Automatic Corrugated Flute Laminating MachinHCL B Automatic Flute Laminator Machine Suitable for corrugated veneer  Fully Automatic Corrugated Flute Laminating Machin
CategoriesFully automatic flute laminating machine
BrandJumbo Corrugated Machinery Solution
Model1450
colorgray
model1450G
Max. Sheet Size (W*L)1450mm*1450mm
Min. Sheet Size (W*L)450mm*450mm
Top paper thickness120~600g/m²
Bottom sheet thickness0.5-10mm(B,A,AB,E flute, etc.)
Laminating Accuracy±1.5mm
Max. Speed12000p/h 150m/min
Power22KW
Dimension L*W*H13.5m*2.4m*2.4m
Height of Bottom Paper400mm
Height of Top Paper1800mm
FOB porttianjin
Download DOC
Update Time2021-10-18
Detail Information
Fully Automatic Corrugated Flute Laminating Machin
Product Introduction
The main function of 1450G intelligent high-speed laminating machine is to match paper and cardboard, so that it increases the material strength and thickness or special effect, after die cutting molding into packaging box. Billboards and other uses.

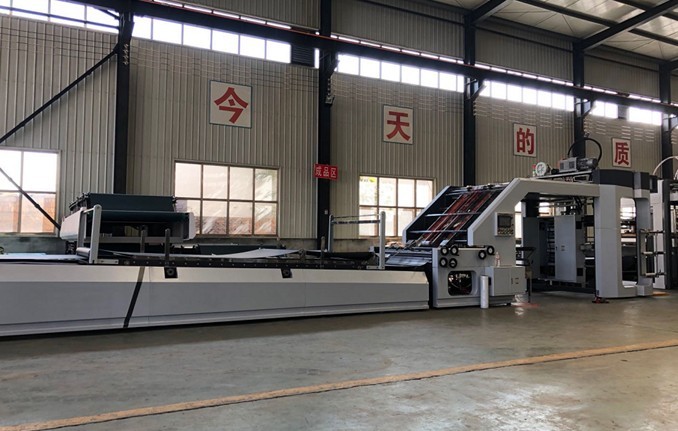

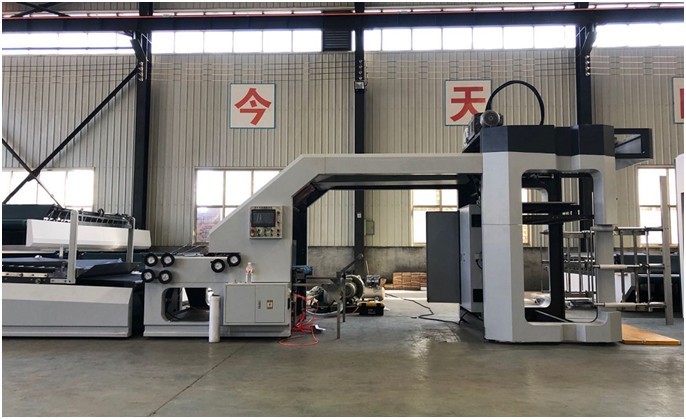

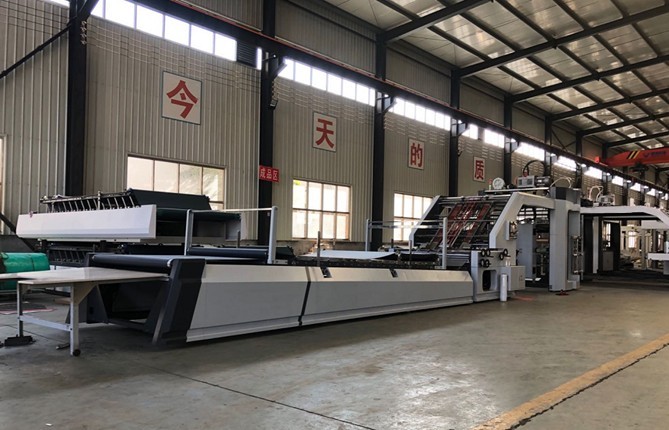

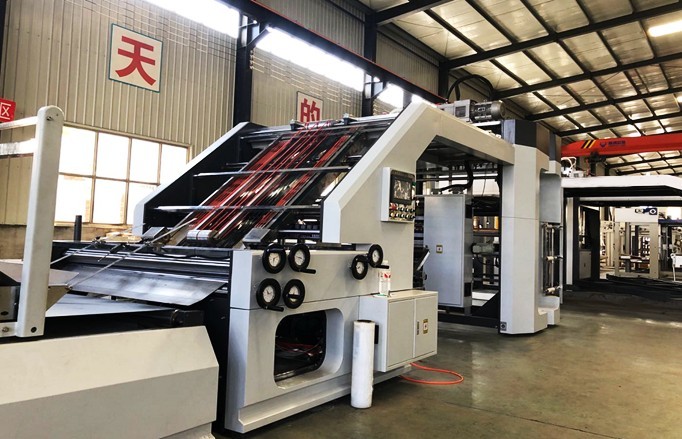

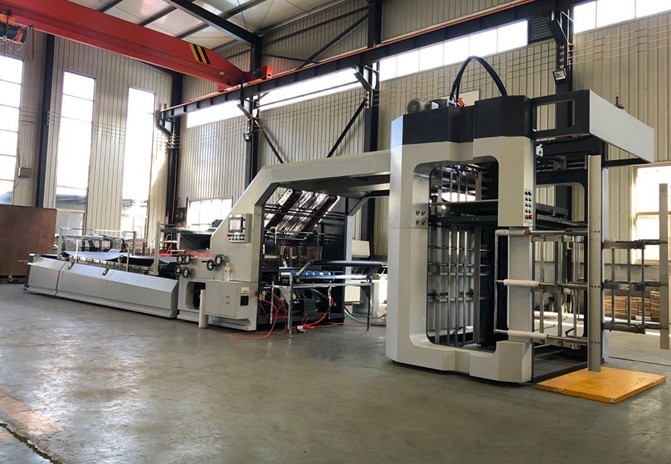

Product Details Map
This equipment adopts the perfect combination of motion control system and servo correction system, using multiple groups of photoelectric induction of the relative position of the bottom paper, control the servo motor on both sides of the surface paper to do independent compensation work, only need to input the paper size can automatically complete the adjustment of equipment, operation and production

● Paper mounting accuracy: the standard accuracy is +1.5mm, at the speed of 9000 pieces/hour, the accuracy can reach +1.0mm;

● Glue consumption: glue consumption is generally 25-30 grams per square meter. The operation technology of the operator and the pit type of the pit paper will also affect the consumption of glue

What we can do for you?
Our Services
  • Reply your inquiry in 24 working hours.(our normal working time:6:00~22:00)

  • Experienced staffs answer all your questions in time.

  • Customized design is available.

  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

  • Special discount and protection of sales are provided to our distributor.

  • Professional factory: We are manufacturer, specializing in producing all kinds of CNC MACHINING CENTER.

  • As an honest seller, we always use superior raw material, advanced processing/testing machines, skilled technicians to ensure our products to be finished in hight quality and stable feature.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
