CategoriesFully automatic flute laminating machine
BrandJumbo Corrugated Machinery Solution
Model1300
colorblack
Mechanical speed0-40m/min
Maximum board size1300x1300MM
Minimum board size200X200MM
power4.5KW
The whole machine size9m x 1.95m x 1.1m
The weight of the1500KG
FOB porttianjin
Download DOC
Update Time2021-10-16
Detail Information

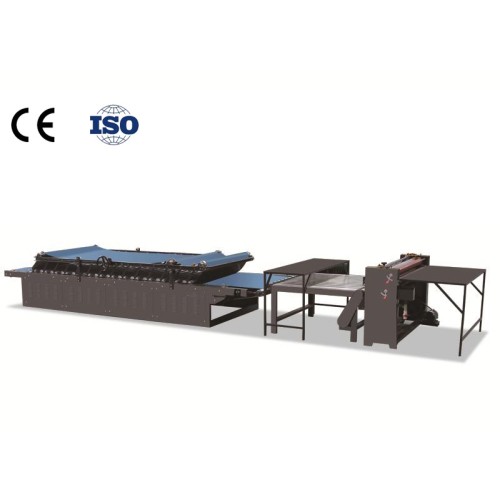

series Semi-auto corrugated cardboard flute lamina


Manual delivery of corrugated paper, cardboard, cardboard

Automatic glue replenishment system, can automatically replenish the lost glue amount, and with the glue recycling;

The linear speed of the measuring roller is scientifically designed, and the glue quantity is uniform at the same time, so as to avoid the glue dumping at high speed.

Independent water tank control water circulation mode, ensure the back of the backing paper dry, while cleaning the rubber roller, glue groove, glue groove;

Manual mounting paper work, precision controllable

The floating movable press ensures that the corrugated paper will not be flattened after mounting, and at the same time keeps the cardboard flat and straight

技术参数

model

1300C



1600C


 Mechanical speed

0-40m/min

0-40m/min

Maximum board size

1300x1300MM

1600X1300MM

Minimum board size

200X200MM

200X200MM

power

4.5KW

4.5KW

The whole machine size

9m x 1.95m x 1.1m

9m x 2.25m x 1.1m

The weight of the

1500KG

1700KG
